Silicone Diffusion Pump Oil SD-705

Name:Silicone Diffusion Pump Oil SD-705

Product Code:SD-705
Synonyms: Diffusion Pump fluid, 1,1,3,5,5-Pentaphenyl-1,3,5-trimethylsiloxane, PhenylmethylsiloxaneOligomers.
CAS NO.: 3390-61-2
Equivalent Products: Dow Corning 705

Product Description

Product Description


Silicone Diffusion Pump Oil SD-705
Product Code:
SD-705
Synonyms: Diffusion Pump fluid, 1,1,3,5,5-Pentaphenyl-1,3,5-trimethylsiloxane, Phenylmethylsiloxane Oligomers.

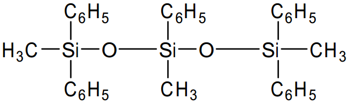

Chemical Structure:

CAS NO.: 3390-61-2
Equivalent Products: Dow Corning 705

SD-705 is a colorless singlecomponent fluid designed for ultrahigh vacuum applications in the range of 10-9 to 10-10 torr (untrapped) and 10-11 torr (trapped). The vapor pressure and backstreaming rate of SD-705 Diffusion Pump Fluid are so low that use of traps or refrigeration is unnecessary for some ultrahigh and ultraclean vacuum applications. It has the highest phenyl content of all silicone diffusion pump fluids and the best resistance to radiation.High spontaneous ignition temperature makes this fluid ideal for use in humanrated space simulation chambers.

Technical Index
